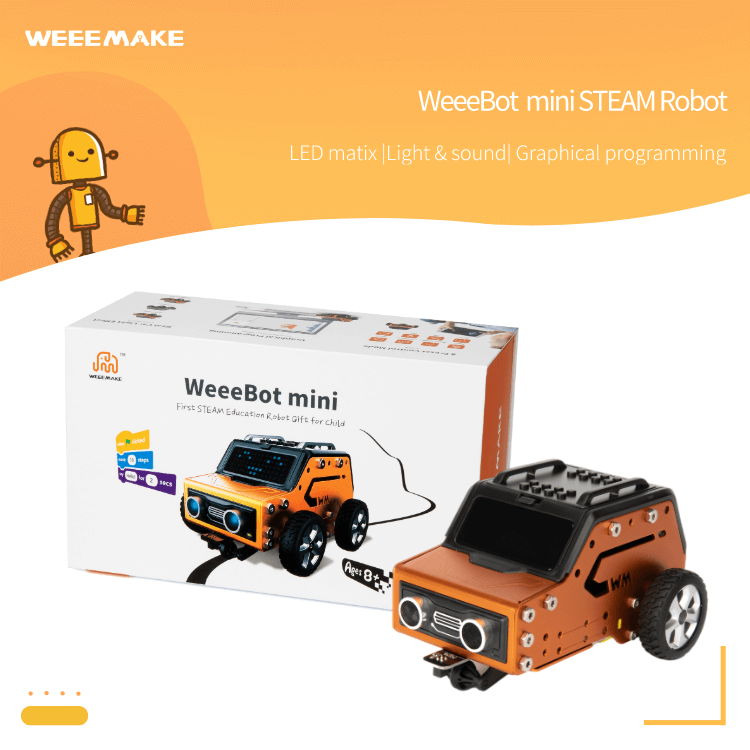

WeeeBot mini STEAM Education Robot
4.WeeeBot mini is an entry-level STEAM programming education robot developed by Weeemake. It combines the knowledge in science, technology, engineering, art, mathematics by hands-on assembly and programming robot projects.
With Weeemake APP control + infrared remote control + computer software programming control, children can learn programming, play games, storytelling by using a WeeeBot mini.
Children learn all kinds of skills in play, not only enhancing their interest in robot learning but also stimulating their innate imagination and creativity.
With Weeemake APP control + infrared remote control + computer software programming control, children can learn programming, play games, storytelling by using a WeeeBot mini.
Children learn all kinds of skills in play, not only enhancing their interest in robot learning but also stimulating their innate imagination and creativity.
Details
Parameter

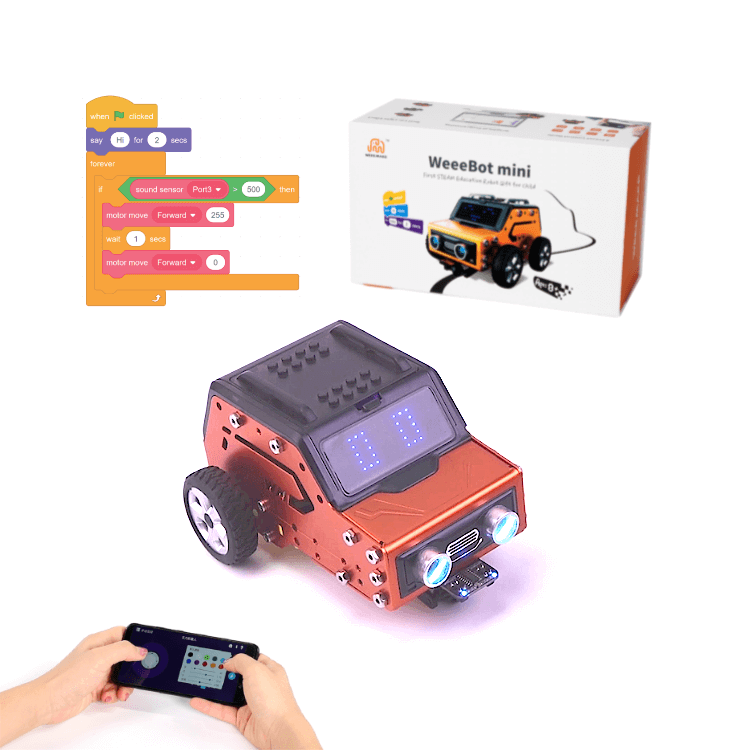

WeeeBot mini is an entry-level fun educational robot for young students to get hands-on experience of robot car, APP controlling, and simple programming about light, sound, buzzer, matrix display, motor control with simple logic and algorithm.
Open and Play
90% assembled, start to play immediately after unboxing. Get started quickly by play, code, and create..png)

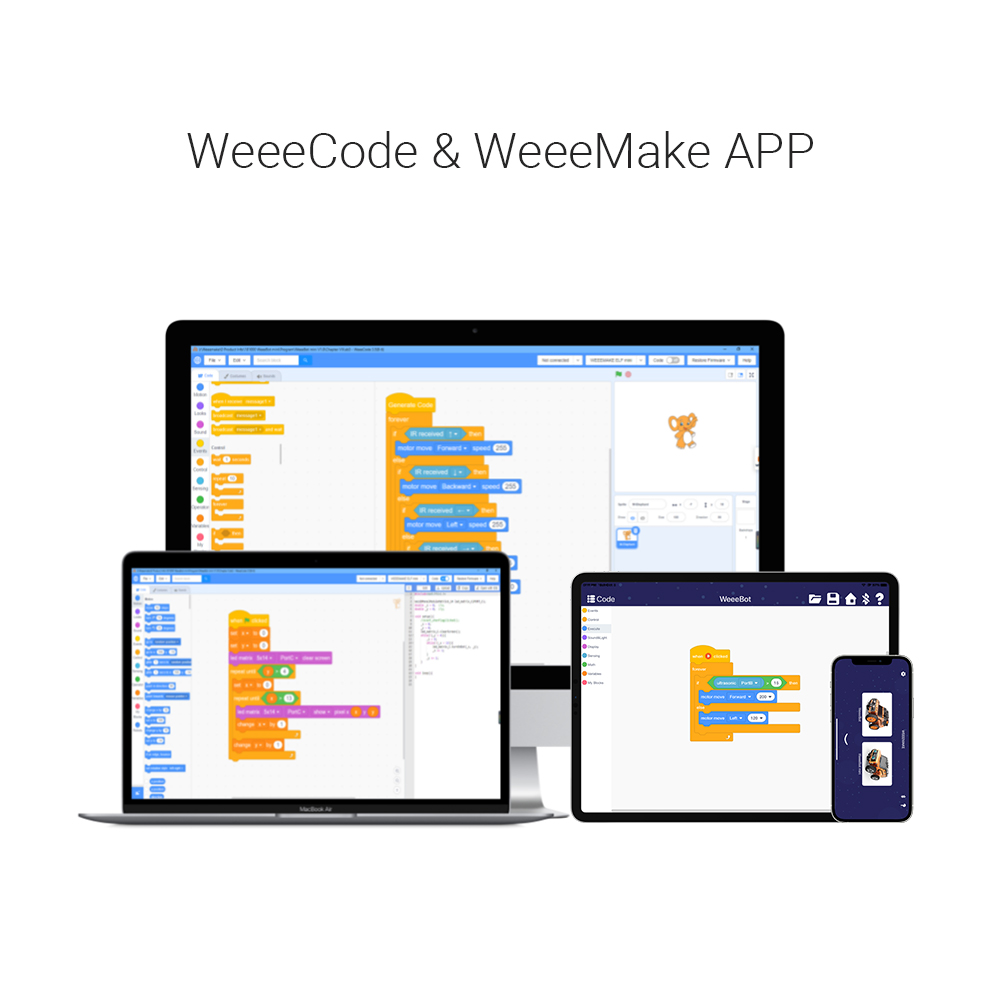

Graphical Programming
To make programming is as simple as playing Lego blocks and learning programming with no threshold anymore.
WeeeCode (based on Scratch 3.0) programming software would lead you to master the language of communication with the robot..png)
Perfect Combination of Technology and Car Form
With CNC precision machining, anodized metal material, WeeeBot mini is simulating the appearance of the jeep and the effect of vehicle lighting. The flexible transformation between the three wheels and the five wheels is more suitable for different game scenes. The roof of WeeeBot mini is compatible with Lego mold, so you can imagine more models and build.
.png)
Rich Expand-Ability

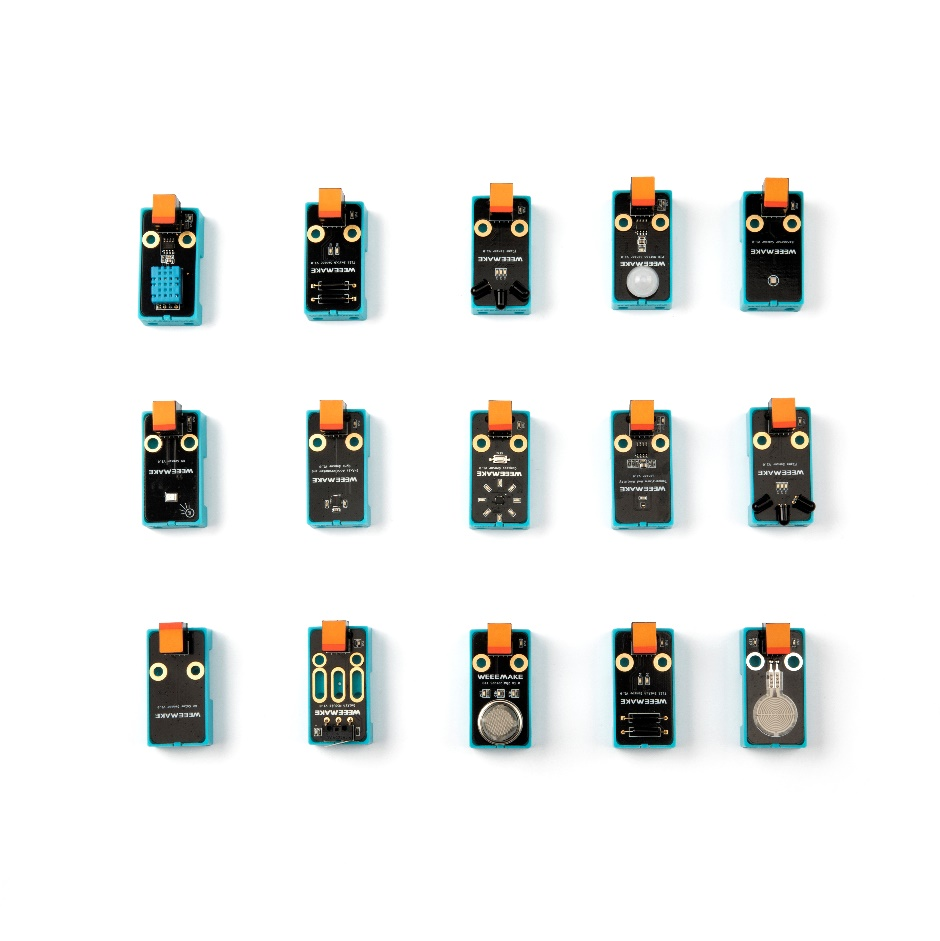

Four RJ11 interfaces are reserved, which can be connected with over 100 + electronic modules in Weeemake parts platform to achieve more game play..png)
Education Version Available
STEAM Education Robot
Open and Play
90% assembled, start to play immediately after unboxing. Get started quickly by play, code, and create.
.png)
Graphical Programming
To make programming is as simple as playing Lego blocks and learning programming with no threshold anymore.
WeeeCode (based on Scratch 3.0) programming software would lead you to master the language of communication with the robot.
.png)
Perfect Combination of Technology and Car Form
With CNC precision machining, anodized metal material, WeeeBot mini is simulating the appearance of the jeep and the effect of vehicle lighting. The flexible transformation between the three wheels and the five wheels is more suitable for different game scenes. The roof of WeeeBot mini is compatible with Lego mold, so you can imagine more models and build.
.png)
Rich Expand-Ability
Four RJ11 interfaces are reserved, which can be connected with over 100 + electronic modules in Weeemake parts platform to achieve more game play.
.png)
Education Version Available
| No. | Name | Theme | Learning Hour | School Class |
| 1 | Learn about Open-Source Robot | Concept of open-source robots WeeeBot mini robot Software introduction - WeeeCode How to run programs Default mode of WeeeBot mini robot |
45 mins | 1 lesson |
| 2 | LED car light | Design principle of traffic lights Blocks of the LED car light Make cool LED car lights |
45 mins | 1 lesson |
| 3 | RGB Module | Origin of the three-primary colors Blocks of the RGB module Color matching rules of RGB Make a rainbow color light |
45 mins | 1 lesson |
| 4 | Buzzer Module | How sound is produced Blocks of buzzer module How to control the buzzer module to play music |
45 mins | 1 lesson |
| 5 | DC motor | Blocks of DC motor Relationship between the robot movement direction and the rotation direction of the DC motors Control the robot to run in square route |
45 mins | 1 lesson |
| 6 | RGB Ultrasonic Sensor | Detection principle of the RGB Ultrasonic Sensor Blocks of the RGB Ultrasonic Sensor Make an obstacle-avoiding robot |
45 mins | 1 lesson |
| 7 | Line-following Module | Working principle of the line-following module Blocks of the line-following module Make a line-following robot |
45 mins | 1 lesson |
| 8 | IR remote control | Principle of the IR remote control Blocks of the IR remote control Make a remote control robot |
45 mins | 1 lesson |
| 9 | Light Module and Sound Module | Working principle of the light module Working principle of the sound module Blocks of the light module Blocks of the sound module Make a smart light |
45 mins | 1 lesson |
| 10 | LED Matrix Panel Module | Working principle of the LED matrix panel module Blocks of the LED matrix panel module Make an LED rolling display |
45 mins | 1 lesson |
SKU: 181000 Consumer Version
Mainboard: ELF mini
Microchip: Atmega 328P
• Port:
4 x RJ11 (connect to RJ11 sensor and modules)
2 x DC motor port
1 x Communication Port (Bluetooth)
• Electronics:
1 x Sound Sensor
1 x Light Sensor
1 x Buzzer
1 x IR Receiver
2 x Yellow LED
2 x Red LED
• Power Switch: 1 x Touch Switch
Sensor & Motor:
1 x RGB IR Avoid Sensor (2 x RGB LED, 2 x Yellow LED, IR Avoid Sensor)
1 x Single-way Line-following Sensor
2 x TT Motor
Power: 6 AA Battery holder (battery is not included)
SKU: 181008 Education Version
Mainboard: ELF mini V2
• Port:
4 x RJ11 (connect to RJ11 sensor and modules)
2 x DC motor port
1 x Communication Port (Bluetooth)
• Electronics:
1 x Sound Sensor
1 x Light Sensor
1 x Buzzer
1 x IR Receiver
2 x Yellow LED
2 x Red LED
• Power Indicator: 4 x Blue LED
• Power Switch:
1 x Touch Switch (turn on/off robot by touching when toggle switch is off)
1 x Toggle Switch (when toggle switch is on, cannot turn off by touch switch)
Sensor & Motor:
1 x RGB Ultrasonic Sensor (2 x RGB LED, 2 x Yellow LED, Ultrasonic Sensor)
1 x Double-way Line-following Sensor
2 x TT Motor
Power: Build-in 14500 lithium battery pack x1 (onboard charging)
Mainboard: ELF mini
Microchip: Atmega 328P
• Port:
4 x RJ11 (connect to RJ11 sensor and modules)
2 x DC motor port
1 x Communication Port (Bluetooth)
• Electronics:
1 x Sound Sensor
1 x Light Sensor
1 x Buzzer
1 x IR Receiver
2 x Yellow LED
2 x Red LED
• Power Switch: 1 x Touch Switch
Sensor & Motor:
1 x RGB IR Avoid Sensor (2 x RGB LED, 2 x Yellow LED, IR Avoid Sensor)
1 x Single-way Line-following Sensor
2 x TT Motor
Power: 6 AA Battery holder (battery is not included)
SKU: 181008 Education Version
Mainboard: ELF mini V2
• Port:
4 x RJ11 (connect to RJ11 sensor and modules)
2 x DC motor port
1 x Communication Port (Bluetooth)
• Electronics:
1 x Sound Sensor
1 x Light Sensor
1 x Buzzer
1 x IR Receiver
2 x Yellow LED
2 x Red LED
• Power Indicator: 4 x Blue LED
• Power Switch:
1 x Touch Switch (turn on/off robot by touching when toggle switch is off)
1 x Toggle Switch (when toggle switch is on, cannot turn off by touch switch)
Sensor & Motor:
1 x RGB Ultrasonic Sensor (2 x RGB LED, 2 x Yellow LED, Ultrasonic Sensor)
1 x Double-way Line-following Sensor
2 x TT Motor
Power: Build-in 14500 lithium battery pack x1 (onboard charging)
